Product Description

KM004 (G636) - Slim Glass Front Refrigerated Combo Vending Machine

Main Features:

• Liquid Injection Foaming Technology guarantees the highest insulation effect;
• Removable Refrigeration Deck, easy to maintain, repair and replace;
• Dual Zone Temperature: top 3 trays at 12~18°C and bottom 3 trays at 3~14°C;
• Double Door Structure separates the control system from refrigerated space;
• With an addtional mounting hole for Card Reader such as Nayax VPOS;
• 45/90 Degree Two-Stage Tiltable Shelves(Trays) make maintenance much easier;
• Tray Spacing is adjustable by each step of 15mm height;
• Metal Runners (Support Rails) installed on tray-F to facilitate cans delivery;
• Label Holders fixed on the front-end of each tray to hold ID & Price labels;
• Drop Sensor installed in delivery bin to assure product delivery;
• LED Strip Lighting, super bright and energy saving;
• Glass Heater embedded in front glass to prevent condensation of moisture;
• Tempered Door Glass with Argon Gas interspace for insulation purpose;
• Fingerprint resistant PCB Controlled Keypad, more sensitive & durable;
• Intelligent Self-Diagnostic Program with Health Timer function;
• MDB and DEX ready, supports cashless payment system and telemetry system;
• Optional with Master Keyed Door Lock for easy management.

Product Parameters:

• Dimensions/Weight: D753mm x W820mm x H1905mm, 197Kg;
• Power Consumption: 110-240V, 50/60Hz, 800W(max)/40W(standby);
• Compressor/Coolant: 3/8 HP compressor (Brand: Embraco), R134a;
• Temperature: adjustable from 3°C~14°C and stratified for snacks and drinks;
• Selections: 6 trays, 30 selections (expandable to 36): 12 of snacks & 18 of drinks;
• Capacity: 42 chips + 75 candies + 60 bottles + 31 cans, total 208 items;
• Loading Quantity: 20Pcs/20'GP;  41Pcs/40'GP

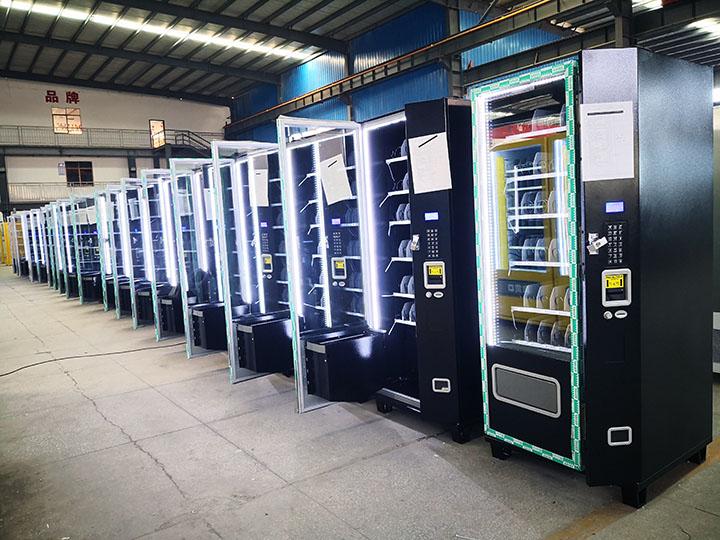

Product Image
